Peak & Hold 8A/2A Injector Driver
Peak & Hold 8A/2A Injector Driver 1 Peak & Hold 8A/2A Injector Driver 2 Peak & Hold 8A/2A Injector Driver 3

Peak & Hold 8A/2A Injector Driver

$219 – $248
In Stock

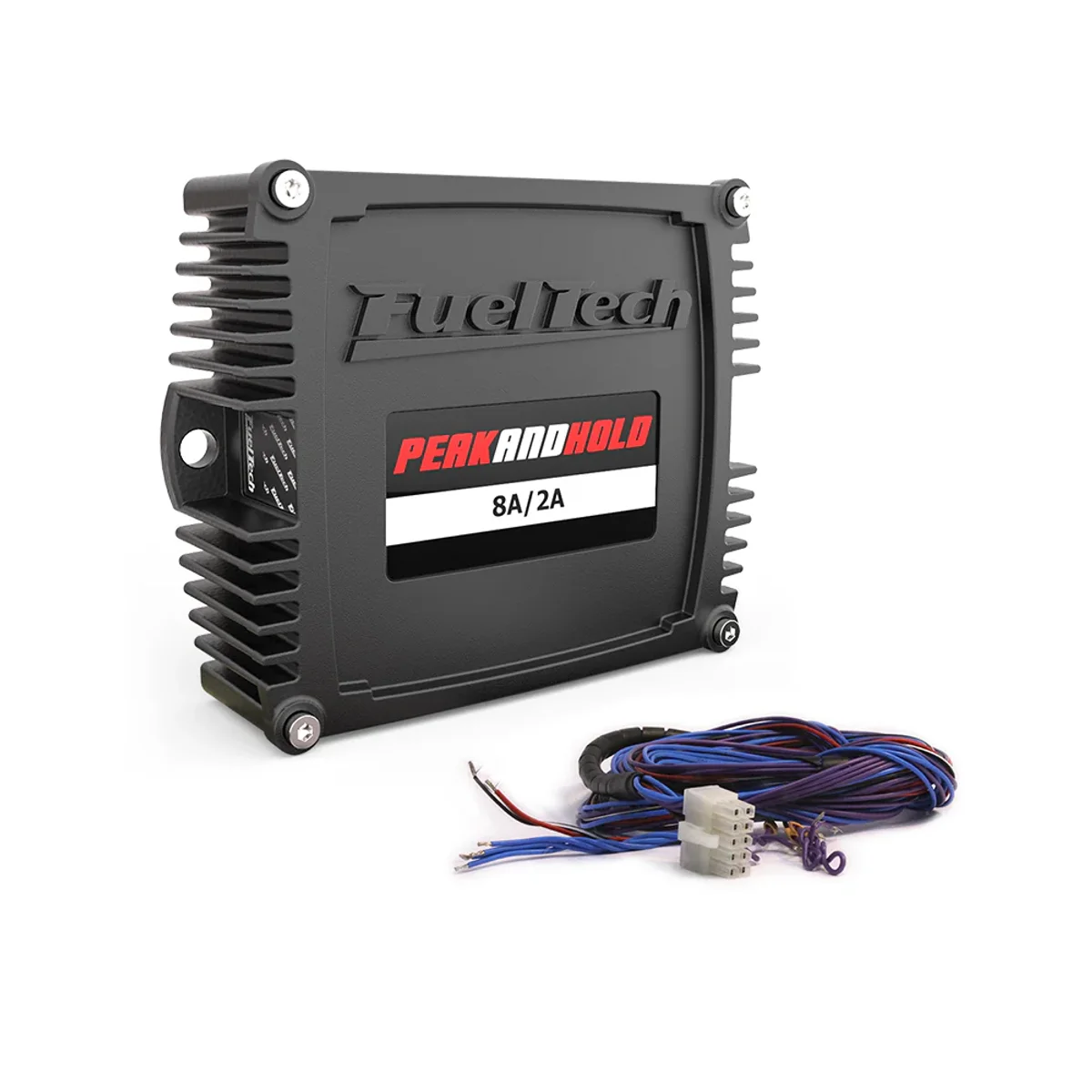

FuelTech’s Peak & Hold 8A/2A Injector Driver is a 4-channel low impedance driver unit that controls up to 4 injectors with impedance below 1.5 ohm. Designed for use with low impedance fuel injectors. Mounting kit included.


  • Current control driver for low impedance injectors

  • 4 channels

  • Available in three current versions:

    • 8A/2A (Currently Viewing)

    • 4A/1A

    • 2A/0.5A

  • Technical Description

  • Peak and Hold 8A/2A (Currently Viewing)

    • Controls up to 4 injectors with impedance below 1.5 ohm

    • 4 FT Injectors (1 per channel)

    • 16 Bosch 160lb/h (1600cc) injectors (4 per channel)

    • 8 Siemens low impedance injectors (2 per channel)

    • 4 MSD low impedance injectors (2 per channel) (with 2 ohms impedance per injector)

  • Peak and Hold 4A/1A

    • Controls up to 4 injectors with 1.5 to 3 ohms of impedance

    • 8 Bosch 160lb/h (1600cc) injectors (2 per channel)

    • 4 Siemens 83lb/h injectors

    • 4 MSD injectors (with 2 ohms impedance per injector)

  • Peak and Hold 2A/0.5A

    • Controls up to 4 injectors with 3 to 7 ohms of impedance

    • 4 Bosch 160lb/h (1600cc) injectors

    • Dimensions: 115 x 90 x 33mm

  • To determine which Peak & Hold you need:

    • Grab a multi-meter and select Ohms 200

    • Touch the positive and negative leads of multi-meter together to measure resistance (record this number...i.e. measured 0.3)

    • Then take the positive and negative leads from multi-meter and put on each terminal of the injector. Doesn't matter the order. Record this measurement

    • Take the ohms measurement from Step 3 and then subtract the number you got in Step 2 (i.e. Step 3 4.8ohms - Step 2 0.3ohms = Total 4.5ohms)

  • High Impedance Injectors – Above 7 ohms – No Peak and Hold Boxes are needed

  • Peak and Hold 2A – 3 ohms to 7 ohms (Bosch 160lb/hr)

  • Peak and Hold 4A – Below 3 ohms to 1.5 ohms

  • Peak and Hold 8A – Below 1.5 ohms (FT Injector, Billet Atomizer*)

  • All low impedance Billet Atomizer Injectors manufactured after Nov. 2012 require 8A regardless of measured resistance

  • Billet Atomizer Injectors – Anything prior to serial # C300*** should only use the 4A/1A. This only applies to injectors manufactured prior to Nov. 2012*

  • Contents of Packaging:

    • 1 Peak and Hold 8A/2A

    • 1 Operation and installation guide

    • 1 mounting kit (4 rubber mounts, 4 washers and 4 ¼” nuts)

    • 6ft Peak and Hold unterminated harness (optional)

    • 1 FuelTech black carbon fiber sticker
